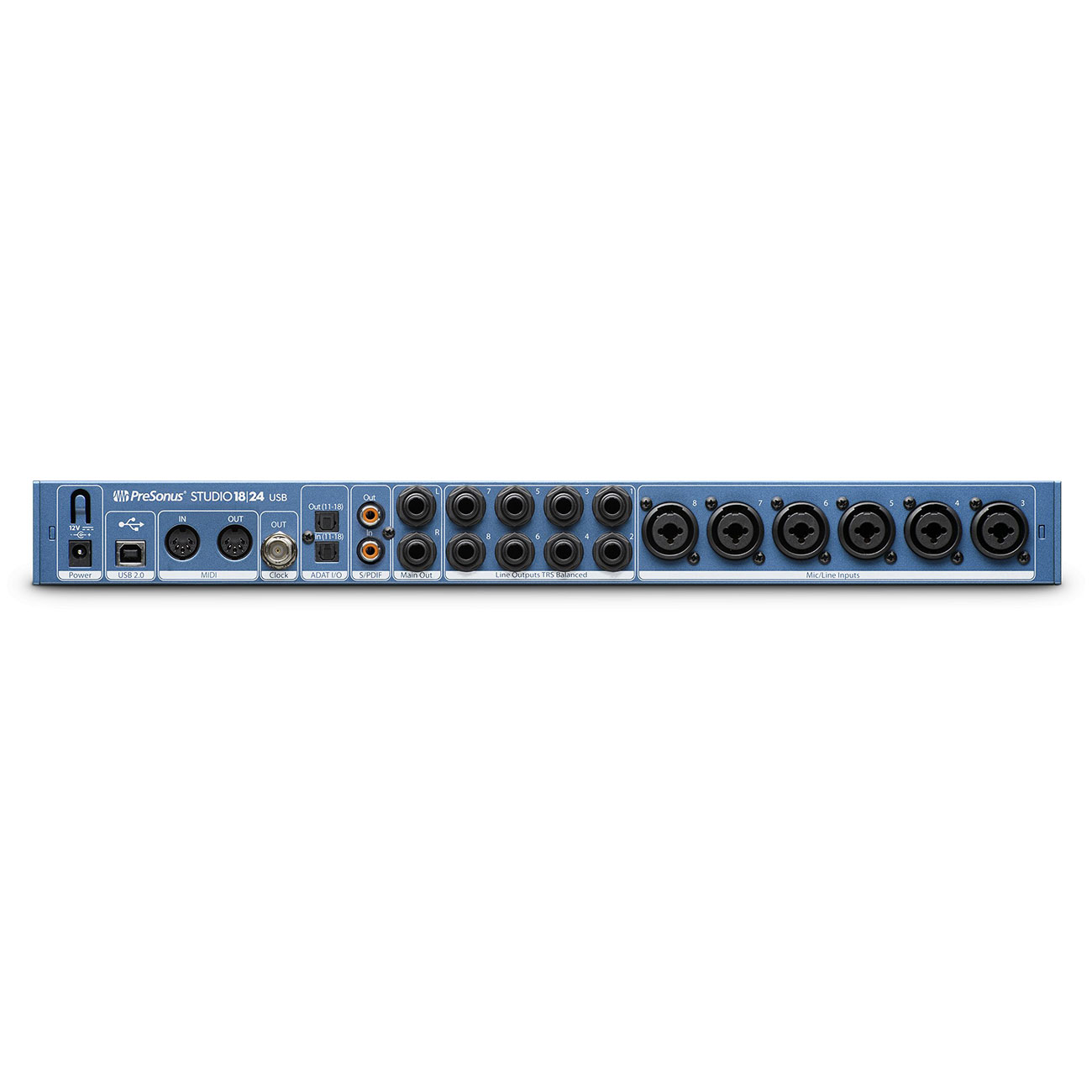

Presonus Studio 1824

Input/Output

• Up to 18 inputs/18 outputs simultaneously (8x8 at 192 kHz)
• 2 mic/instrument/line inputs with XMAX Class A mic preamps
• 6 mic/line inputs with XMAX Class A mic preamps
• 8 channels of ADAT Optical I/O (4 channels at 96 kHz)
• 2 balanced ¼ TRS main outputs
•    DC coupled for sending control voltages
• 8 balanced ¼ TRS line outputs for monitor mixing
•    DC coupled for sending control voltages
• 2 stereo headphone outputs with individual level controls
• MIDI In/Out
• Stereo S/PDIF digital I/O
• 1 USB 2.0 port
• BNC word clock output

Integrated Software

• Studio One® Artist for Mac® and Windows®
• UC Surface control software for Mac, Windows, iPad®, and Android
• Studio Magic Plug-in Suite

Meters, Controls, and Features

• 18x8 onboard DSP monitor mixer
• Front-panel level controls for main outputs
• Mono and Mute buttons for the main outputs
• True +48V phantom power for condenser microphones (global)
• 10 ladder-style 8-LED level meters (8 input, 2 main output)

Digital

• 24-bit resolution
• 44.1, 48, 88.2, 96, 176.4, and 192 kHz sampling rates

Physical

• 1U rack-mountable
• Road-rugged construction with all-metal chassis and metal knobs
