Electro Voice EKX-15

• EKX-15: 1600 W (peak), 132 dB peak SPL utilizing high-sensitivity transducers designed and engineered by EV.
• EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage.
• Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish.

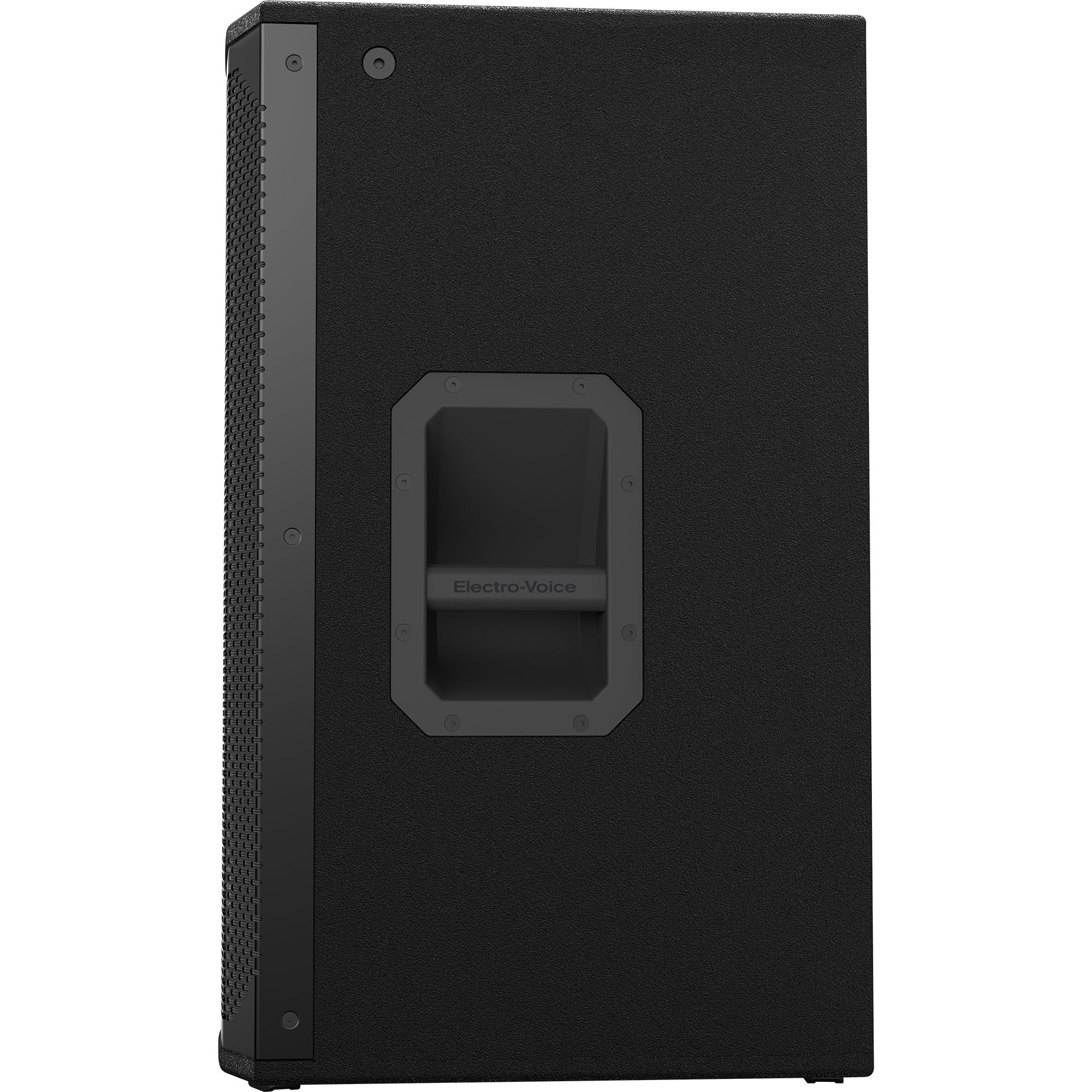

• Eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles.

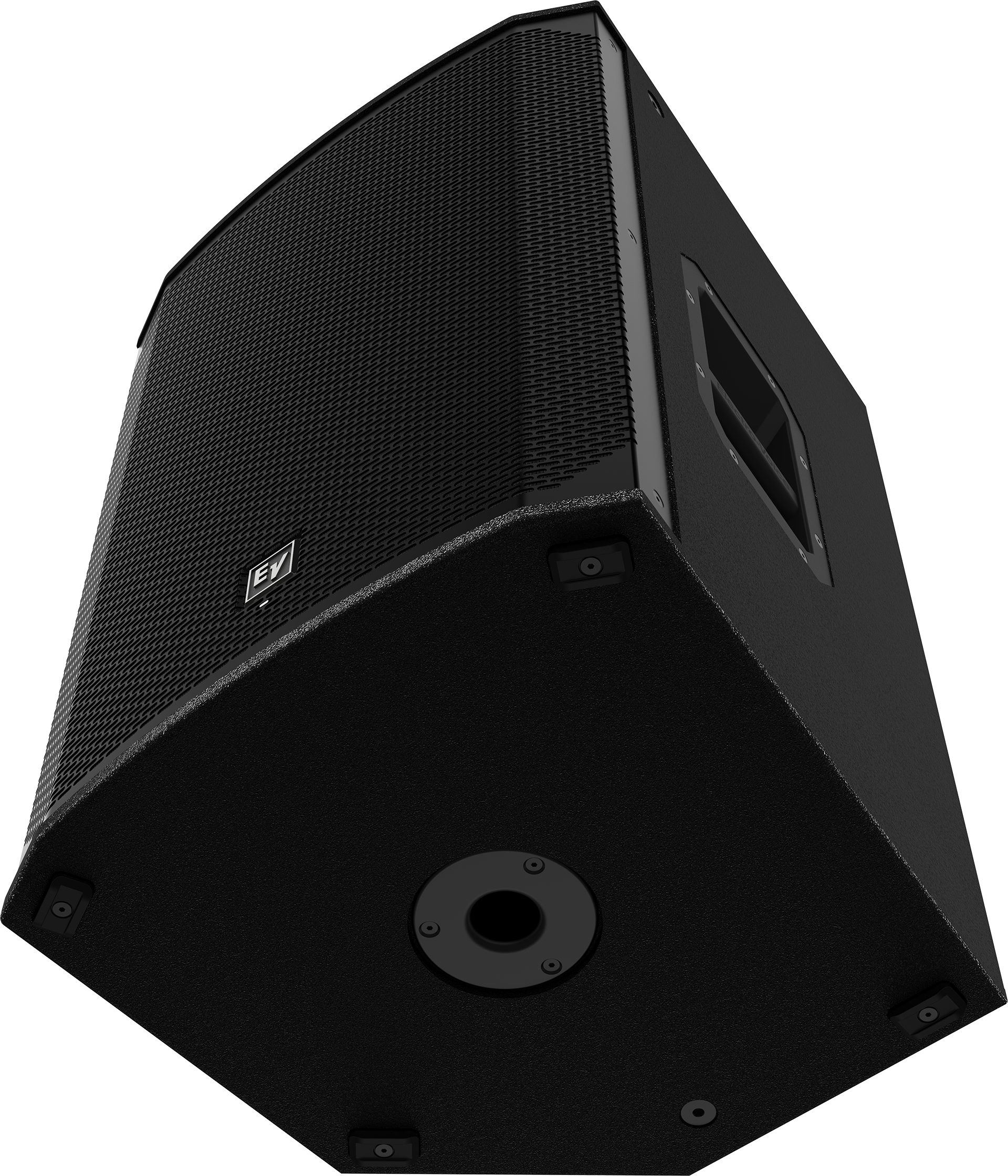

• 90˚ x 60˚ pattern for best coverage on mid-size stages. 40˚ monitor angle with rubber feet.

Axial Sensitivity (SPL, 1 W @ 1 m)    96 dB Full Space Measurement
Maximum SPL    132 dB Maximum SPL is measured at 1 m using broadband pink noise at rated peak power rating
Nominal Impedance    8 Ω
Power Handling (Continuous / Peak)    400 W/1600 W
Frequency Response (-3 dB)    75 Hz - 18 k Hz Full Space Measurement
Frequency Response (-10 dB)    50 Hz - 20 k Hz Full Space Measurement
Recommended High-Pass Frequency    50 Hz
Coverage (Nominal -6 dB) H    90 °
Coverage (Nominal -6 dB) V    60 °
LF Transducer    EVS-15M 381 mm (15 in)
HF Transducer    DH-1M 1-inch titanium compression driver
Crossover Frequency    1.6 k Hz
Minimum Impedance    7.2 Ω
Connector Type    Dual NL4
Enclosure Material    15 mm, plywood with EVCoat
Grill    18 AWG steel with powdercoat
Suspension    (8) M10 threaded mounting points
Height    685 mm (26.97")
Width    432 mm (17.01")
Depth    429 mm (16.89")
Weight Net    23.2 kg (51.15 lbs)
Shipping Weight    28.2 kg (62.17 lbs)
