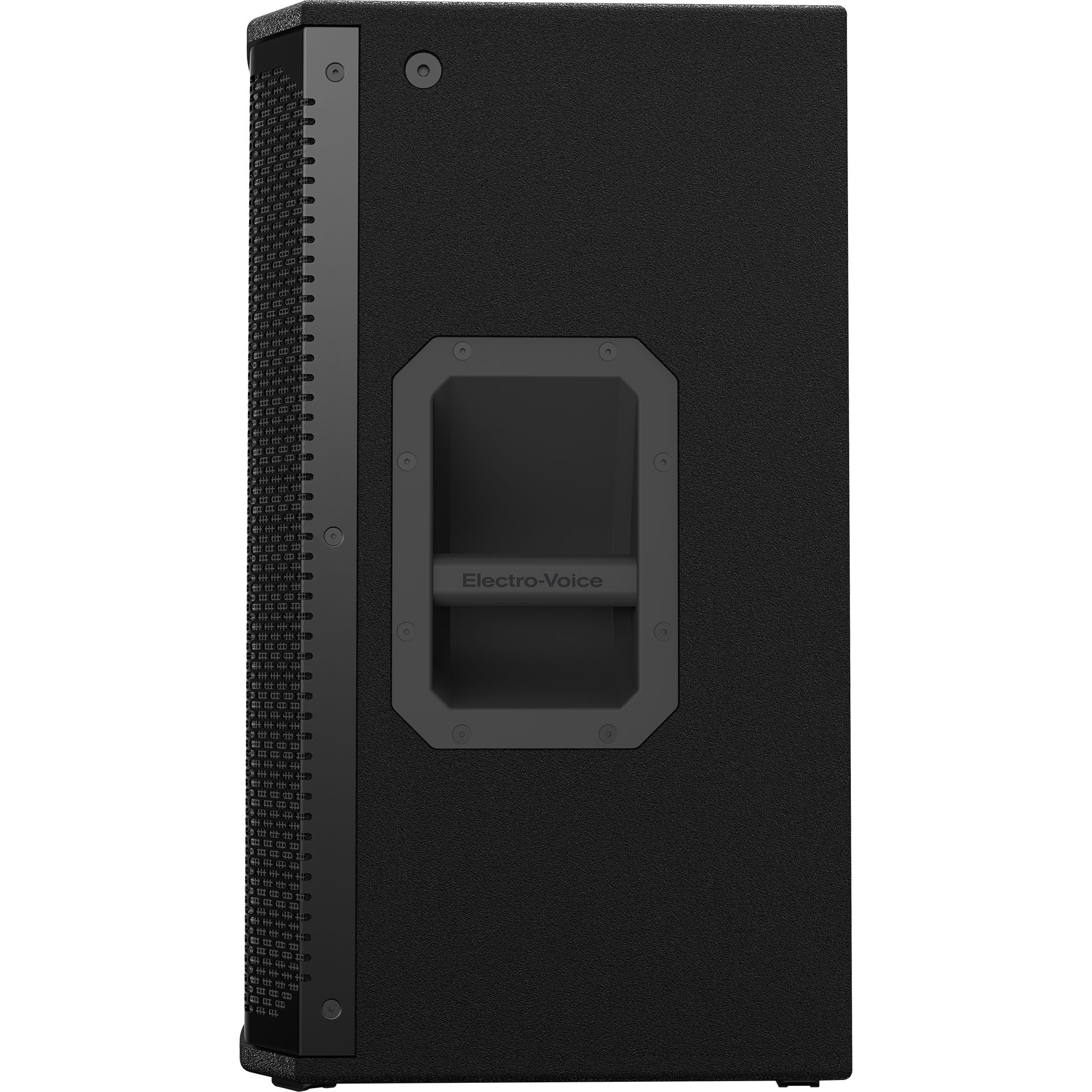

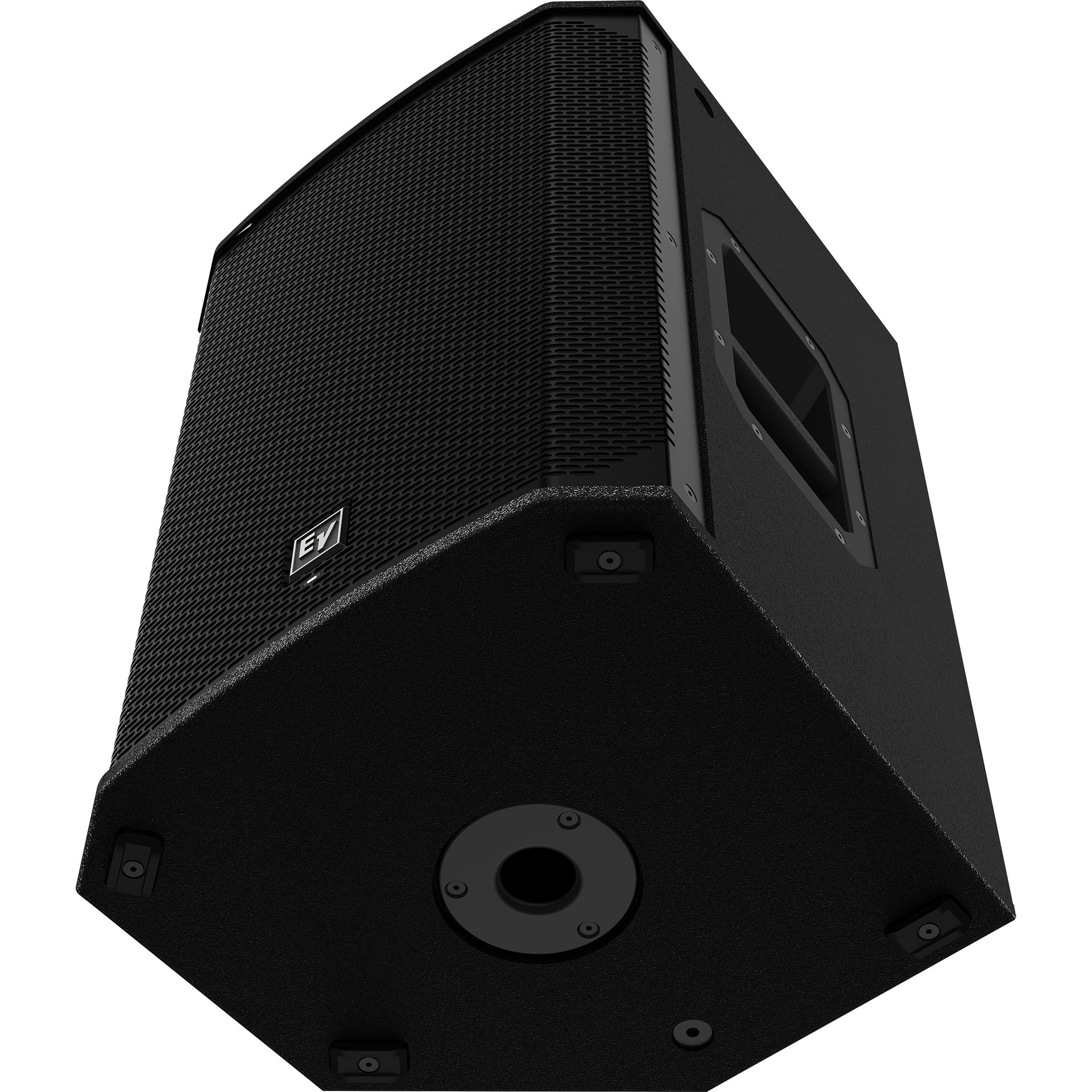

Electro Voice EKX-12

• EKX-12: 1400 W (peak), 131 dB peak SPL utilizing high-sensitivity transducers designed and engineered by EV.
• EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage.
• Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish.
• Eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles.
• 90˚ x 60˚ pattern for best coverage on mid-size stages. 40˚ monitor angle with rubber feet.

Axial Sensitivity (SPL, 1 W @ 1 m)    95 dB
Maximum SPL    131 dB Maximum SPL is measured at 1 m using broadband pink noise at rated peak power rating
Nominal Impedance    8 Ω
Power Handling (Continuous / Peak)    350 W/1400 W
Frequency Response (-3 dB)    82 Hz - 18 k Hz Full Space Measurement
Frequency Response (-10 dB)    55 Hz - 20 k Hz Full Space Measurement
Recommended High-Pass Frequency    55 Hz
Coverage (Nominal -6 dB) H    90 °
LF Transducer    EVS-12M 300 mm (12 in)
HF Transducer    DH-1M 1-inch titanium compression driver
Crossover Frequency    1.6 k Hz
Minimum Impedance    7.5 Ω
Connector Type    Dual NL4
Enclosure Material    15 mm, plywood with EVCoat
Grill    18 AWG steel with powdercoat
Suspension    (8) M10 threaded mounting points
Height    607 mm
Width    375 mm
Depth    356 mm
Weight Net    17.4 kg
Shipping Weight    21.4 kg
