dB Technologies LVX P10

Technische Daten

• Speaker Type: 2-Way Passive Speaker

Akustische Daten

• Peak Power: 600 W
• Impedance: 8 Ohms
• Frequency Response [- 10 dB]: 73- 19.000 Hz
• Max SPL: 125 dB
• HF: 1 “, 1" v.c.
• Directivity: 90x70 °
• Horn: Rotatable
• LF: 10“, 1.5" v.c.

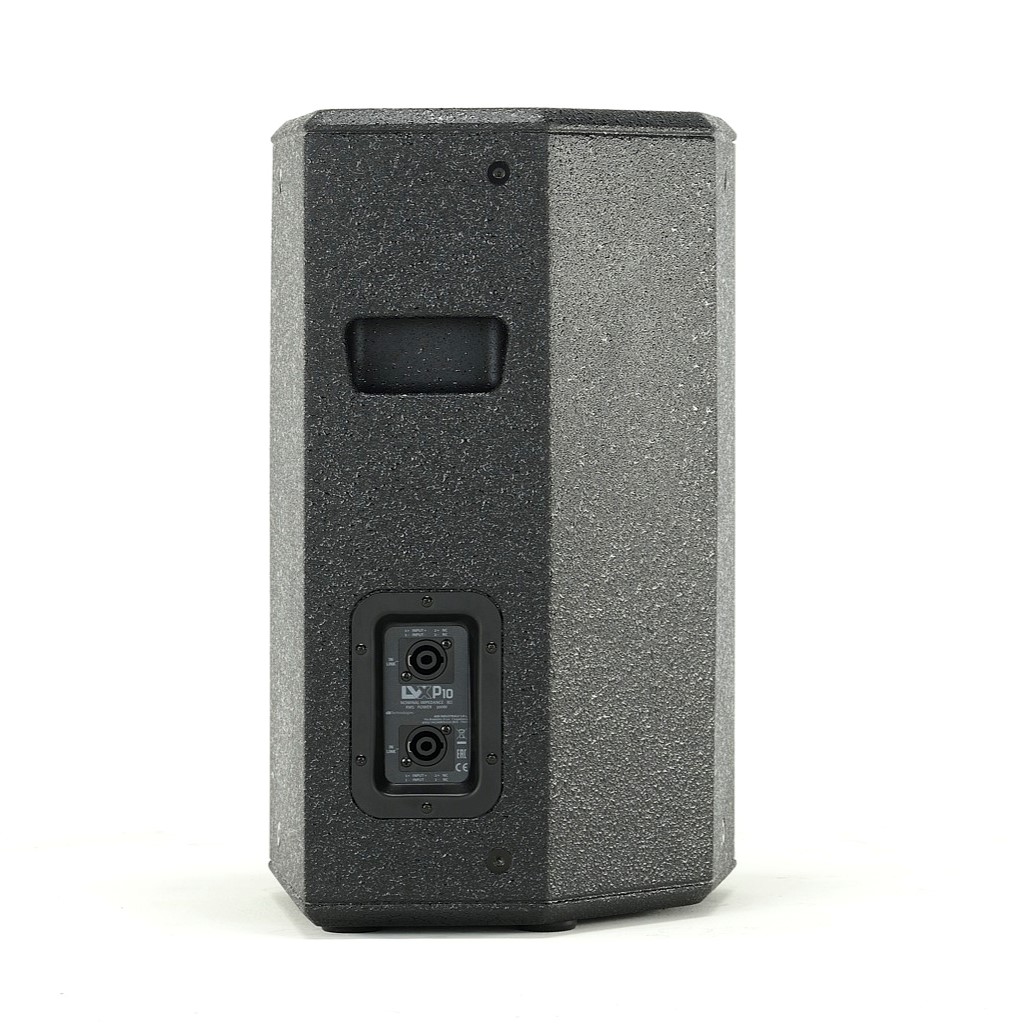

Eingang

• Signal Input: 1x Speakon (Pin 1+=+) (Pin 1-=-)
• Signal Output: 1x Speakon (Pin 1+=+) (Pin 1-=-)

Mechanik

• Housing: Plywood
• Pole Mount: 36 mm
• Angle Up: Monitor use 40°
• Rigging Points: 12 x M8
• Handles: 1 on back side
• Width: 300 mm
• Height: 496 mm
• Depth: 298 mm
• Weight: 9.3 kg
