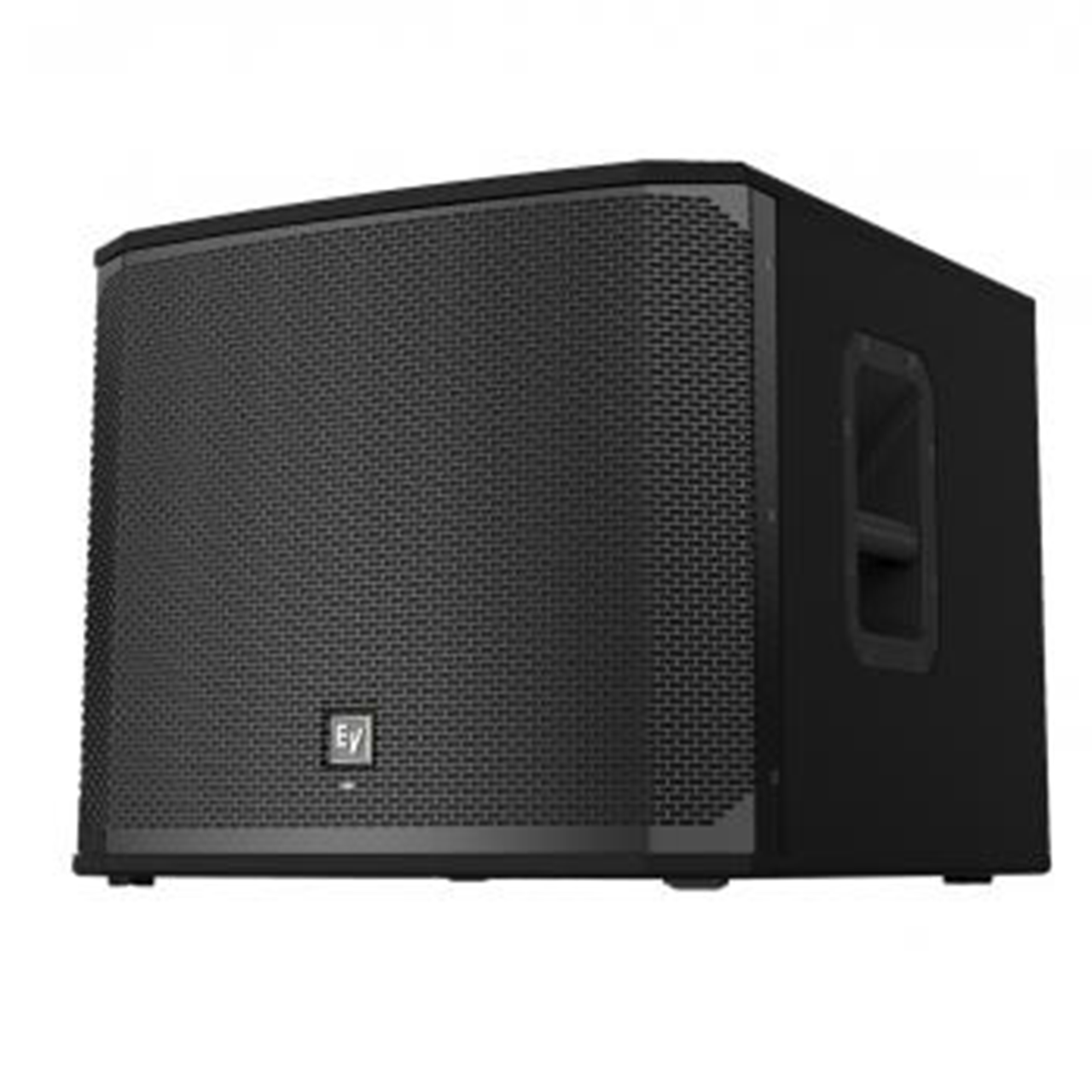

Electro Voice EKX-15S

• 1600 W (peak), 133 dB peak SPL on the EKX-15S utilizing highsensitivity transducers designed and engineered by EV.
• Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish.
• Large slot ports for low distortion and excellent bass extension.
• Metal grille reinforcement bar (two bars on the EKX-18S).
• M20 threaded pole mount plate.

Axial Sensitivity (SPL, 1 W @ 1 m)    95 dB
Maximum SPL    133 dB Maximum SPL is measured at 1 m using broadband pink noise at rated peak power rating
Nominal Impedance    8 Ω
Power Handling (Continuous / Peak)    400 W/1600 W
Frequency Response (-3 dB)    60 Hz - 100 Hz Half Space Measurement
Frequency Response (-10 dB)    40 Hz - 300 Hz Half Space Measurement
Recommended High-Pass Frequency    35 Hz
LF Transducer    EVS-15C 381 mm (15 in)
Minimum Impedance    7.5 Ω
Connector Type    Dual NL4
Enclosure Material    15 mm, plywood with EVCoat
Grill    18 AWG steel with powdercoat
Height    455 mm (17.91")
Width    530 mm (20.87")
Depth    551 mm (21.69")
Weight Net    24.9 kg (54.9 lbs)
Shipping Weight    31.3 kg (69 lbs)
