Electro Voice ETX-18SP

slide 2 of 4

58,47 €*

* monatliche "alternative Mietkaufrate" Laufzeit: 72 Monate Gesamtkosten: 4.209,84 € Wie kommen die Gesamtkosten zustande?

Ware wird nach Vertragsabschluss bestellt

inkl. MwSt. Versandinformationen

Artikel-Nr.:
01936445
GTIN:
08717332927067

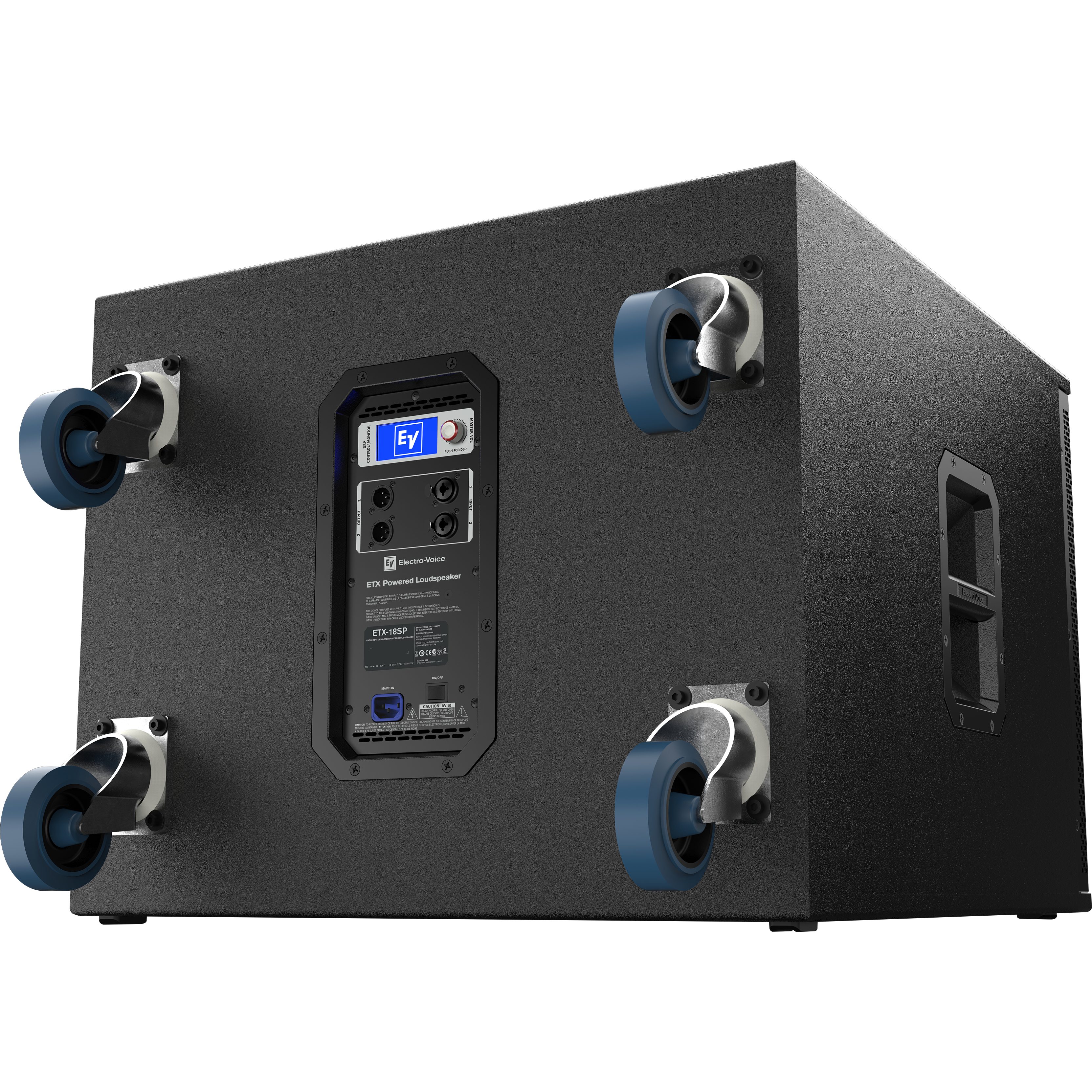

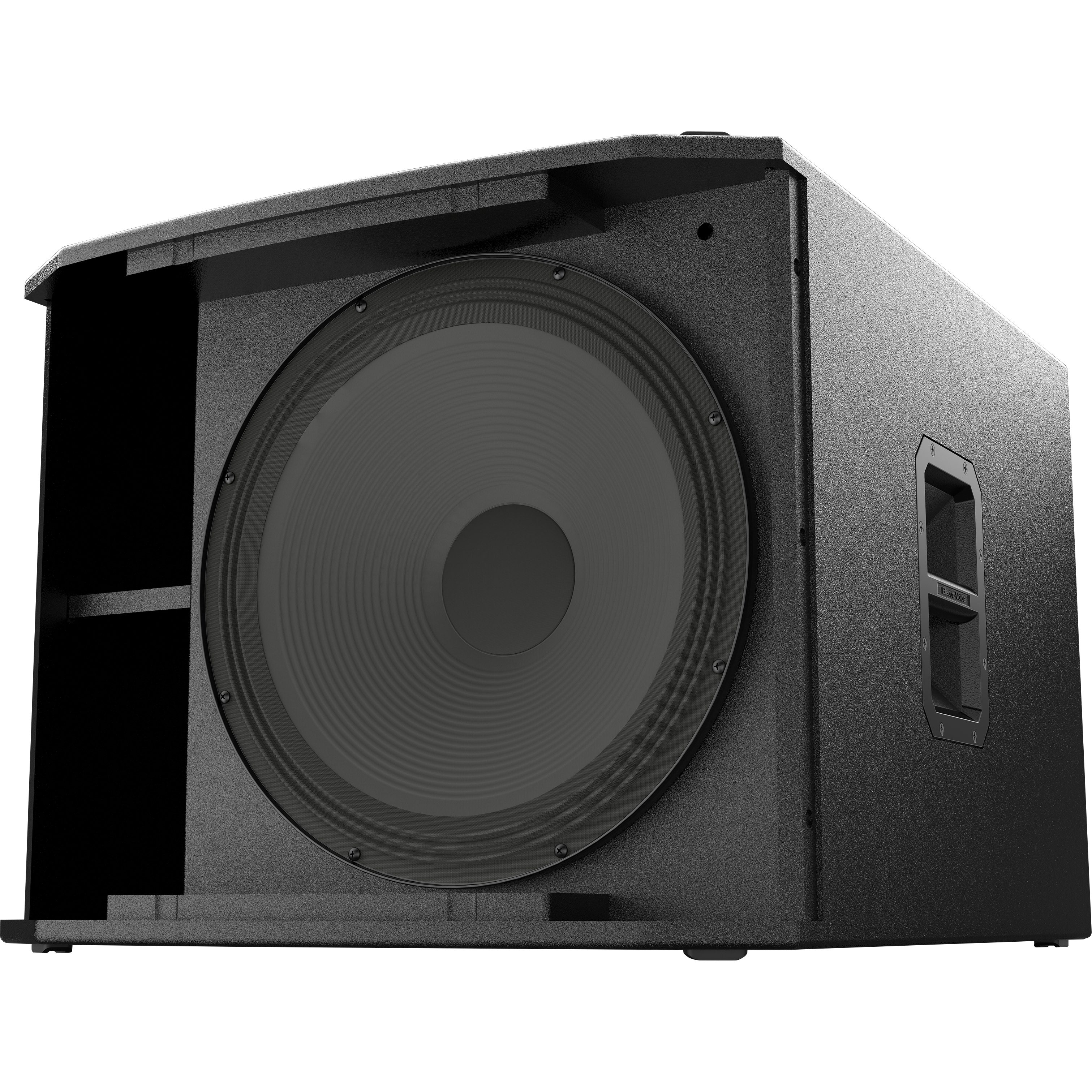

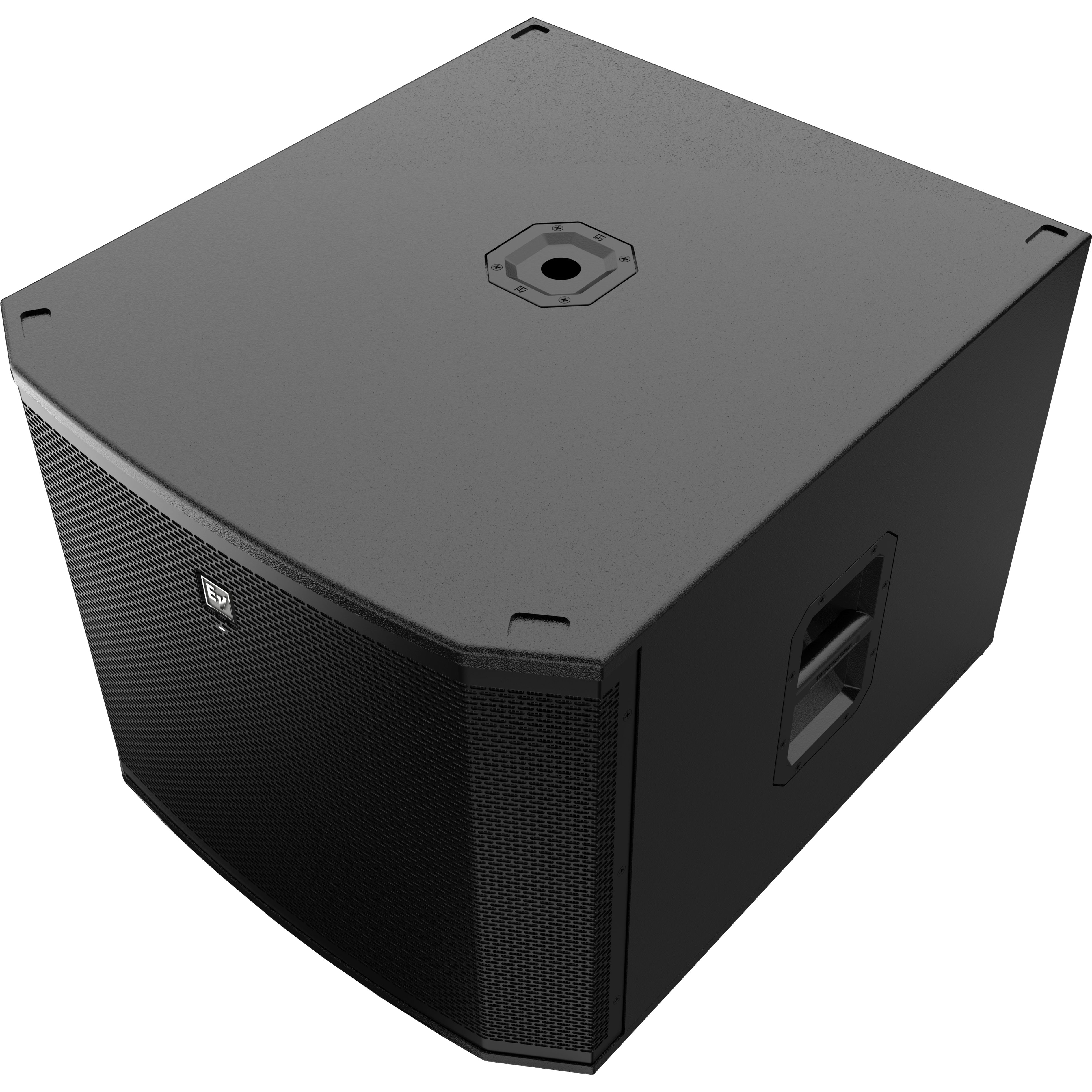

Produktinformationen "Electro Voice ETX-18SP"

  • 18-inch DVX woofer for extended low-frequency response
  • 1800 W Class-D power amplifier with integrated FIR-Drive DSP
  • 135 dB peak SPL
  • Special DSP preset for true cardioid performance across the full operating bandwidth
  • Combo pole cup (insert and threaded) for use with the ETX Powered Loudspeaker full range models
  • Removable casters


Frequency Range    28 Hz 180 Hz
Low Pass Frequency    Adjustable: 80 Hz, 100 Hz, 120 Hz, 150 Hz
Maximum SPL    135 dB peak dB
Power Consumption    100 240 V~, 50 60 Hz, 1.6 0.8 A
Power Rating    1800 W
Frequency Response    33 Hz 150 Hz
LF Transducer    DVX3180A 457 mm (18 in)
Connector Type    (2) XLR/TRS Combo Jack and (2) XLR link Output
Height    550 mm
Width    675 mm
Depth    910 mm
Weight Net    51.8 kg
Shipping Weight    58.9 kg

0 von 0 Bewertungen

Bewerten Sie dieses Produkt!

Teilen Sie Ihre Erfahrungen mit anderen Kunden.

Similar Items

slide 1 to 5 of 5
Electro Voice ETX-10P
Electro Voice ETX-10P
10-inch LF SMX woofer 1.25-inch HF titanium compression driver 2000 W Class-D power amplifier with integrated FIR-Drive DSP 134 dB peak SPL Frequency Range    65 Hz 20 kHz Full space measurement using the music DSP preset and 150 Hz low pass. Maximum SPL    134 peak dB Maximum SPL is measured at 1 m using broadband pink noise at maximum output. Power Consumption    100 240 V~, 50 60 Hz, 1.6 0.8 A Current rating is 1/8 power. Power Rating    2000 W Frequency Response    85 Hz 20 kHz Full space measurement using the music DSP preset and 150 Hz low pass. Coverage (Nominal -6 dB) H    90 ° Coverage (Nominal -6 dB) V    60 ° LF Transducer    SMX2100 254 mm (10 in) HF Transducer    DH3-B 1.25-in titanium compression driver Crossover Frequency    1700 Hz Connector Type    (2) XLR/TRS combo jack and (1) XLR link output Enclosure Material    18-mm, 13-ply birch plywood with EVCoat Grill    16AWG steel with powdercoat Suspension    (8) M10 suspension points Height    526 mm Width    330 mm Depth    365 mm Weight Net    20.3 kg Shipping Weight    22.9 kg

44,97 €*
* mtl. "alternative Mietkaufrate" bei einer Laufzeit von 72 Monaten
Details

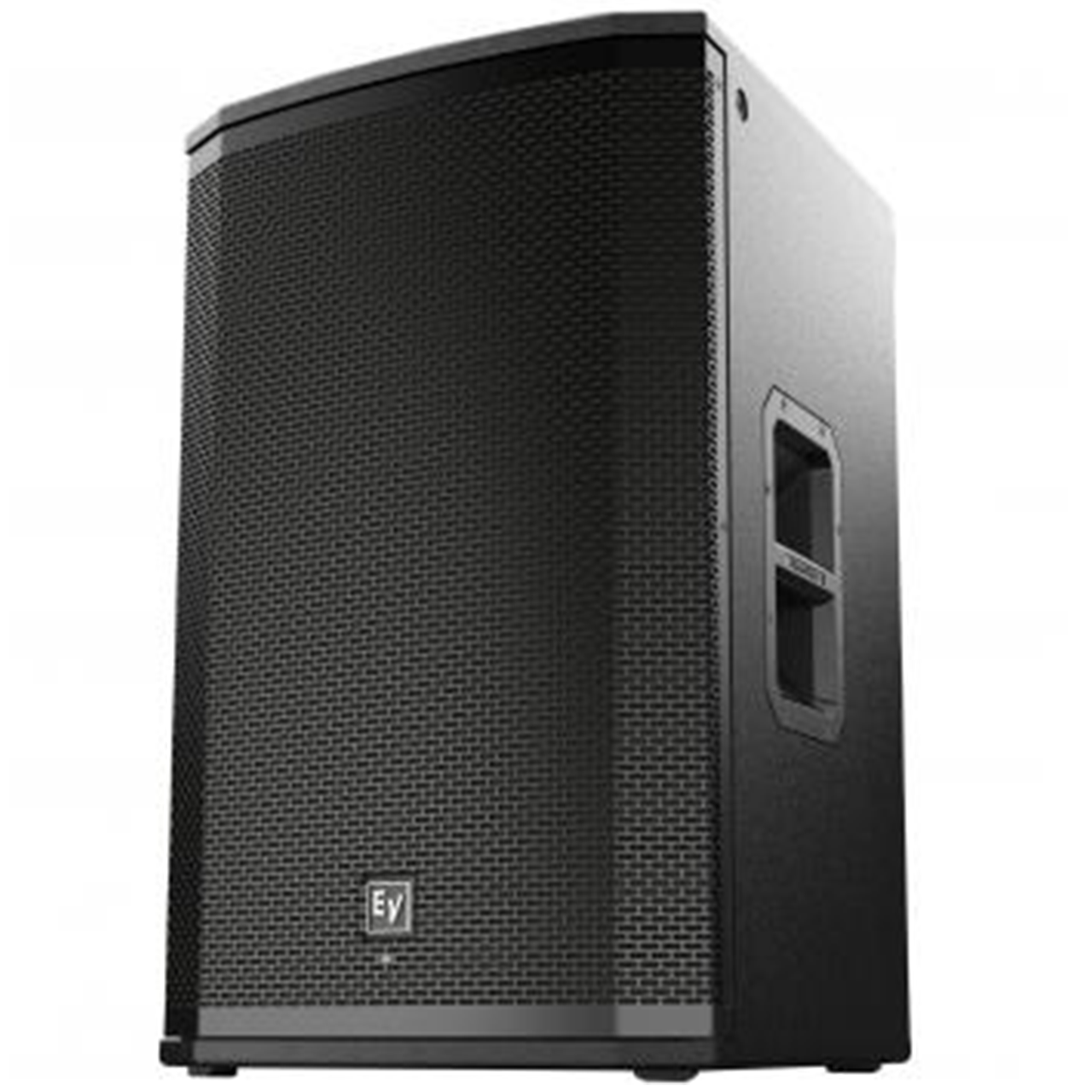

Electro Voice ETX-15P
Electro Voice ETX-15P
15-inch LF SMX woofer 1.25-inch HF titanium compression driver 2000 W Class-D power amplifier with integrated FIR-Drive DSP 135 dB peak SPL Frequency Range    40 Hz 20 kHz Maximum SPL    135 dB peak dB Power Consumption    100 240 V~, 50 60 Hz, 1.6 0.8 A Power Rating    2000 W Frequency Response    48 Hz 20 kHz Coverage (Nominal -6 dB) H    90 ° Coverage (Nominal -6 dB) V    60 ° LF Transducer    SMX2150 380 mm (15 in) HF Transducer    DH3-B 1.25-in titanium compression driver Crossover Frequency    1500 Hz Connector Type    (2) XLR/TRS combo jack and (1) XLR link output Enclosure Material    18-mm, 13-ply birch plywood with EVCoat Grill    16AWG steel with powdercoat Suspension    (8) M10 suspension points Height    691 mm Width    431 mm Depth    447 mm Weight Net    27.7 kg Shipping Weight    31.5 kg

50,97 €*
* mtl. "alternative Mietkaufrate" bei einer Laufzeit von 72 Monaten
Details

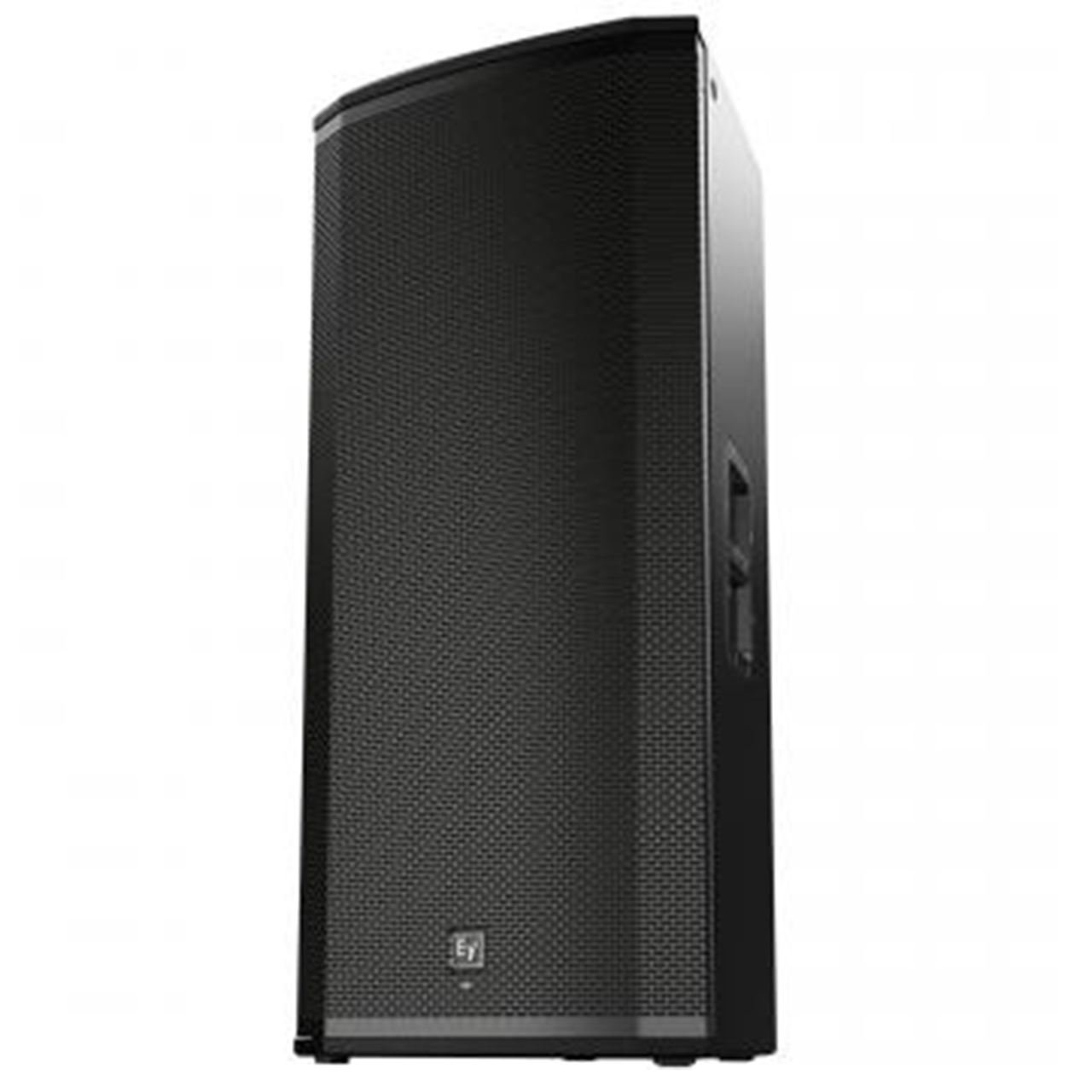

Electro Voice ETX-35P
Electro Voice ETX-35P
15-inch LF SMX woofer 6.5-inch MF driver 1.25-inch HF titanium compression driver 2000 W Class-D power amplifier with integrated FIR-Drive DSP 136 dB peak SPL Frequency Range    38 Hz 20 kHz Maximum SPL    136 peak dB Power Consumption    100 240 V~, 50 60 Hz, 1.6 0.8 A Power Rating    2000 W Frequency Response    48 Hz 20 kHz Coverage (Nominal -6 dB) H    60 ° Coverage (Nominal -6 dB) V    40 ° LF Transducer    SMX2151 380 mm (15 in) MF Transducer    EVS-6C 6.5-in midbass driver HF Transducer    DH3-B 1.25-in titanium compression driver Crossover Frequency    700 Hz, 2900 Hz Connector Type    (2) XLR/TRS combo jack and (1) XLR link output Enclosure Material    18-mm, 13-ply birch plywood with EVCoat Grill    16AWG steel with powdercoat Suspension    (8) M10 suspension points Height    1023 mm Width    469 mm Depth    426 mm Weight Net    41.7 kg Shipping Weight    46.8 kg

56,97 €*
* mtl. "alternative Mietkaufrate" bei einer Laufzeit von 72 Monaten
Details
Electro Voice ETX-15SP
Electro Voice ETX-15SP
15-inch DVX woofer for maximum punch 1800 W Class-D power amplifier with integrated FIR-Drive DSP 134 dB peak SPL Special DSP preset for true cardioid performance across the full operating bandwidth Combo pole cup (insert and threaded) for use with the ETX Powered Loudspeaker full range models Removable casters Frequency Range    32 Hz 180 Hz Low Pass Frequency    Adjustable: 80 Hz, 100 Hz, 120 Hz, 150 Hz Maximum SPL    134 dB peak dB Power Rating    1800 W Frequency Response    37 Hz 150 Hz LF Transducer    DVX3159A 380 mm (15 in) Connector Type    (2) XLR/TRS Combo Jack and (2) XLR link Output Enclosure Material    18-mm, 13-ply birch plywood with EVCoat Grill    16AWG steel with powdercoat Height    471 mm Width    576 mm Depth    825 mm Weight Net    41.7 kg Shipping Weight    46.8 kg

53,97 €*
* mtl. "alternative Mietkaufrate" bei einer Laufzeit von 72 Monaten
Details

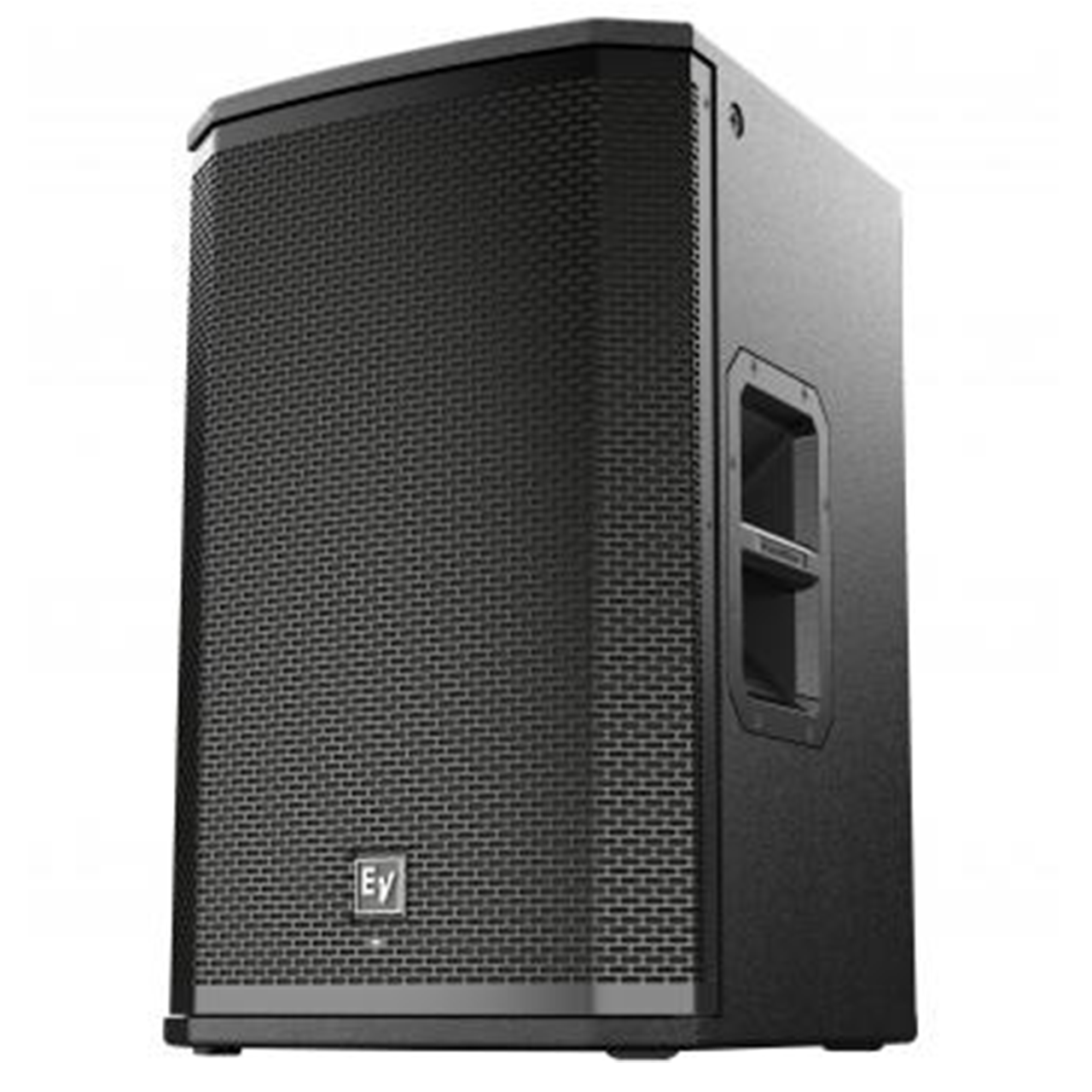

Electro Voice ETX-12P
