ADJ Encore FR Pro Color

The ADJ Lighting Encore FR Pro Color is a professional grade Fresnel fixture with a 7-inch lens designed for key light, as a fill light and as a back light. It offers a full spectrum of colors with (virtual) CMY Color Mixing DMX modes, and tunable white color temperatures from 2400K to 8500K. It’s powered by a 400W 6-IN-1 LED engine with red, green, blue, amber, lime and cyan LEDs.

The Encore FR Pro Color has a motorized zoom range of 9~37°, a high CRI rating with an output of more than 9,000 Lumens. There are an abundant of on-board features such as 5 DMX control modes, 6 Dim Curves, preset color macros, and adjustable refresh rates.

The fixture has DMX-512 and RDM protocols, a USB service port, a 4-Button control panel LCD menu display, 3 & 5-pin DMX In/Out sockets and locking power In/Out to daisy chain power from one fixture to another.

A rotating 8-leaf barn door, gel frame and power cord are included with the fixture.


Specifications

Source:

•  1X400W 6-IN-1 LED
•  50,000 Hour Average LED Life


Photometric data:

•  9.237 Total Lumen Output (Full ON, Zoomed Out to Full)
•  23.179 LUX/2.153 FC @2m (Zoomed In / Full ON)
•  2.860 LUX/266 FC @2m (Zoom Out / Full ON)
•  Beam Angle 9° - 37°
•  Max Field Angle 50°
•  Color Temperature: Tunable, 2400K to 8500K
•  CRI: 94+

Effects:

•  Motorized zoom
•  Electronic Dimmer and Strobe (1-20Hz)
•  Variable 16-bit Dimming Modes and Curves
•  Virtual CMY Color Mixing DMX Control Modes
•  Tunable White Color Temperature from 2400K to 8500K
•  62 Preset White Color Temp Macros (2400K to 8500K)
•  Virtual Color Swatch Book with 60 preset colors
•  64 Preset RGBA Color macro's


Control/Connections

•  Dimmer and Zoom Rotary Dials
•  5 DMX Channel Modes (14 / 17 / 19 / 13 CMY / 19 CMY)
•  4 Button Control Panel LCD Menu Display
•  Adjustable Refresh Rate (68 presets from 900 – 25,000Hz)
•  6 Preset Dim Modes (Standard, Stage, TV, Architectural, Theatre and Stage 2)
•  Dim Speed Options (0.1s to 10s)
•  4 Dim Curves (Square, Linear, Inv. Squa and S. Curve)
•  RDM (Remote Device Management)

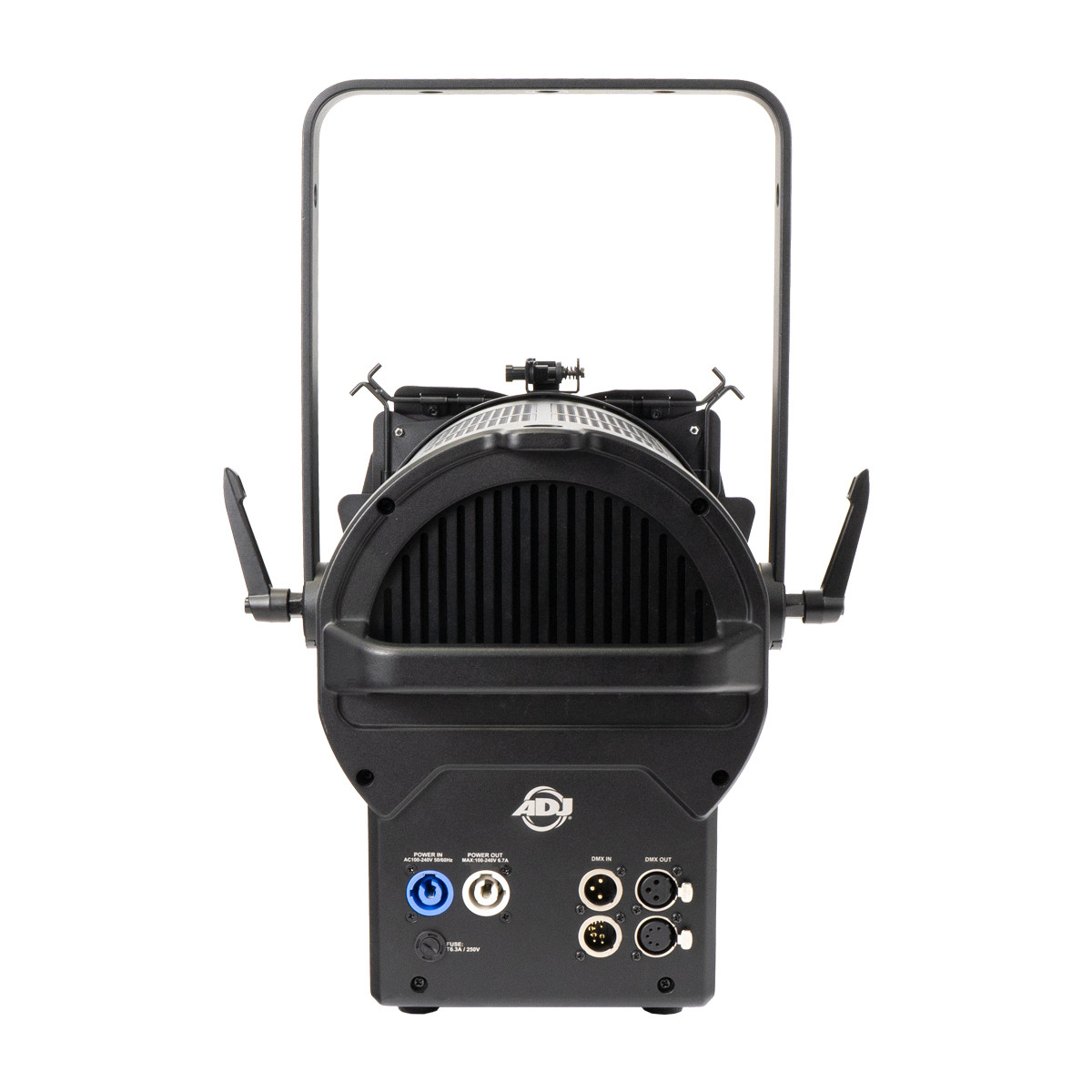

•  3/5pin DMX and IP65 Locking Power Cable In/Out
•  Locking Power Input and Output
•  USB Service Port


Dimensions & weight:

•  Length: 414.5mm
•  Width: 360.1mm
•  Vertical Height: 490mm
•  Weight: 9.45kg
•

Electrical/Thermal:

•  AC 100-240V - 47/63Hz
•  450W Max Power Consumption
•  -15°C to 45°C
•  Power Linking: 5Pcs @ 240V


Included items:

•  Gel Frame
•  Power Cable
•  8-blade Barndoor
